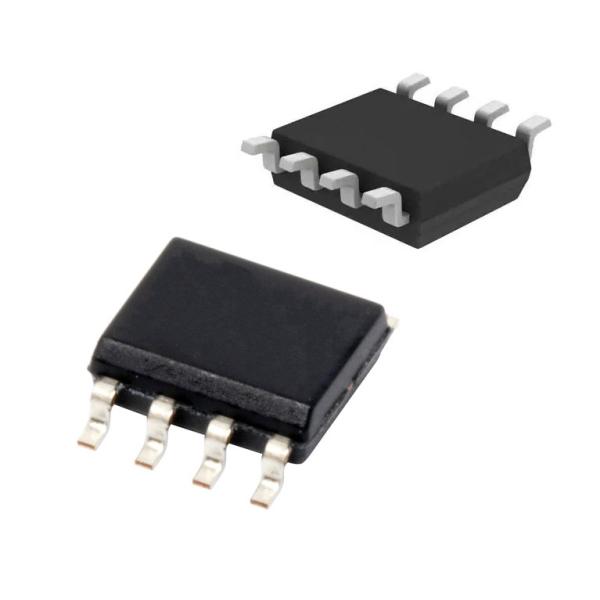

AD8628ARZ 1.1mA 2.5MHz Operational Amplifier Chip

Product Categories
CHUANGXINDA ELECTRONICS-TECH CO., LIMITED
Contact Now

AD8628ARZ 1.1mA 2.5MHz Operational Amplifier Chip

Brand Name : Analog Devices

Model Number : AD8628ARZ-REEL7

Certification : Lead free / RoHS Compliant

MOQ : 1 pcs

Price : USD 0.33-0.65 pcs

Payment Terms : T/T, Western Union, Paypal, Trade Assurance, Credit Card

Supply Ability : 1,800,000 pcs

Delivery Time : 1-2 Day

Packaging Details : International Standard Packaging

Condition : Original 100%,Brand New and Original,New

Category : Precision Amplifiers

Package / Case : SOIC-8

Supply Voltage - Max : 6 V

GBP - Gain Bandwidth Product : 2.5 MHz

Vos - Input Offset Voltage : 1 uV

Ib - Input Bias Current : 100 pA

Operating Supply Current : 1.1 mA

Service : BOM Kitting

Lead time : In Stock,contact us

Contact Now

AD8628ARZ-REEL7 Operational Amplifier AD8628ARZ SOIC-8 OPAMP

Product Attribute Attribute Value
Analog Devices Inc.
Precision Amplifiers
AD8628
1 Channel
2.5 MHz
140 dB
100 pA
1 uV
6 V
2.7 V
1.1 mA
- 40 C
+ 125 C
SMD/SMT
SOIC-8
Cut Tape
MouseReel
Reel
Height: 1.5 mm (Max)
Length: 5 mm (Max)
Product: Precision Amplifiers
Type: Chopper Stabilization
Width: 4 mm (Max)
Brand: Analog Devices
Maximum Dual Supply Voltage: +/- 2.5 V
Minimum Dual Supply Voltage: +/- 1.35 V
Operating Supply Voltage: 2.7 V to 6 V
Product Type: Precision Amplifiers
PSRR - Power Supply Rejection Ratio: 130 dB
Factory Pack Quantity: 1000
Subcategory: Amplifier ICs
Voltage Gain dB: 145 dB
Unit Weight: 0.019048 oz

FEATURES
Lowest auto-zero amplifier noise
Low offset voltage: 1 μV
Input offset drift: 0.002 μV/°C
Rail-to-rail input and output swing
5 V single-supply operation
High gain, CMRR, and PSRR: 130 dB
Very low input bias current: 100 pA maximum
Low supply current: 1.0 mA
Overload recovery time: 50 μs
No external components required
Qualified for automotive applications

APPLICATIONS
Automotive sensors
Pressure and position sensors
Strain gage amplifiers
Medical instrumentation
Thermocouple amplifiers
Precision current sensing
Photodiode amplifiers

GENERAL DESCRIPTION

This amplifier has ultralow offset, drift, and bias current. The AD8628/AD8629/AD8630 are wide bandwidth auto-zero
amplifiers featuring rail-to-rail input and output swing and low noise. Operation is fully specified from 2.7 V to 5 V single supply
(±1.35 V to ±2.5 V dual supply).

With an offset voltage of only 1 μV, drift of less than 0.005 μV/°C, and noise of only 0.5 μV p-p (0.1 Hz to 10 Hz), the AD8628/
AD8629/AD8630 are suited for applications where error sources cannot be tolerated. Position and pressure sensors,
medical equipment, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range.
Many systems can take advantage of the rail-to-rail input and output swings provided by the AD8628/AD8629/AD8630 to
reduce input biasing complexity and maximize SNR.
